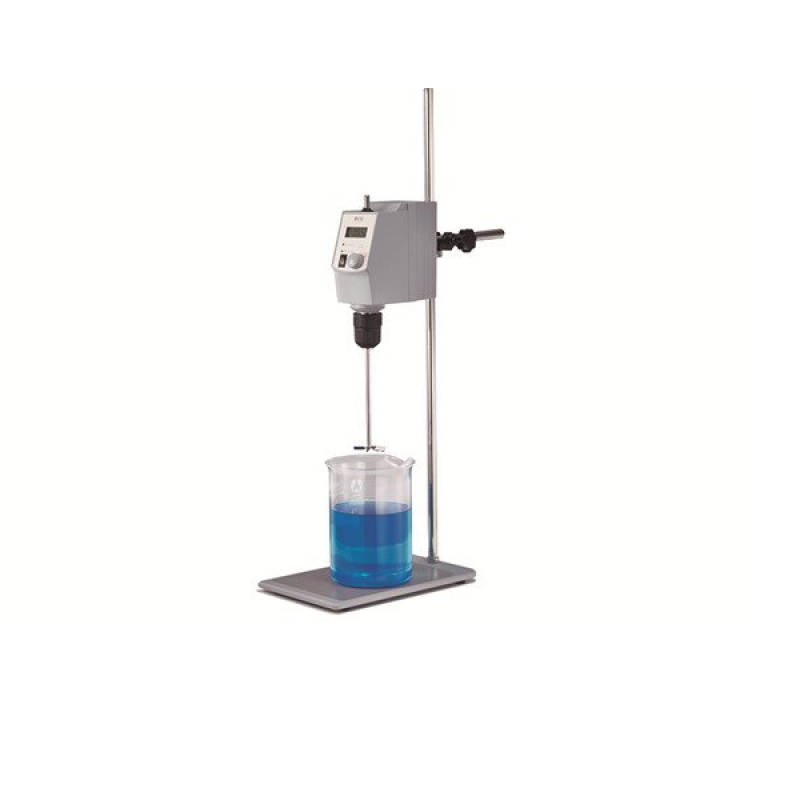

DLAB OS20-S Mechanical Stirrer

Product Features

• High reliability and outstanding performance.

• Wide speed range from 50 to 2200 rpm.

• Long-life brushless DC motor, maintenance-free and explosion-proof.

• LED display for real-time speed monitoring.

• Safety circuits provide safe shutdown under stall prevention or overload conditions.

Technical Specifications

• Model: OS20-S

• Max. stirring quantity (H₂O): 30 L

• Motor type: Brushless DC motor

• Motor input power: 100 W

• Motor output power: 50 W

• Voltage: 100–240 V, 50/60 Hz

• Power: 100 W

• Speed range: 50–2200 rpm

• Speed display accuracy: ±3 rpm

• Speed display: LED

• Overload protection indicator: LED lights

• Max. torque: 40 N·cm

• Max. viscosity: 10,000 mPa·s

• Chuck diameter range: 0.5–10 mm

• Dimensions (W×H×D): 83×220×186 mm

• Weight: 2.8 kg

• Protection class: IP42

• Permissible ambient temperature and humidity: 5–40°C, 80% RH
