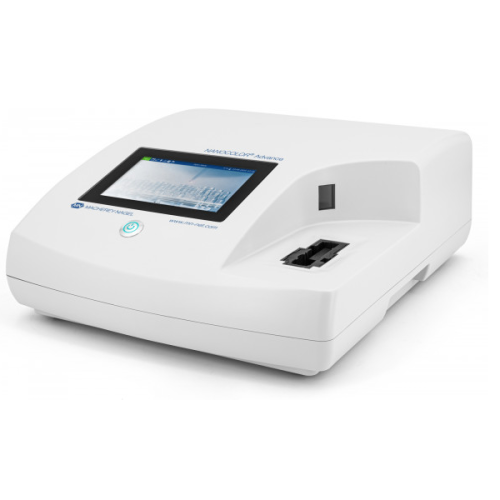

MN-NANOCOLOR VISIBLE SU ANALİZ SPEKTROFOTOMETRESİ ADVENCE

Marka: MACHEREY-NAGEL NANOCOLOR
Ürün Kodu: 02092021003
Stok Durumu: 2-3 Days

Açıklama
Yorumlar (0)

NANOCOLOR Advance spektrofotometre, taşınabilir kompakt fotometremiz PF-12Plus ile yüksek hassasiyetli NANOCOLOR VIS II'nin en önemli özelliklerini bir araya getirir. Günlük laboratuvar rutininde hassas ve güvenilir ölçüm sonuçları sağlar ve şarj edilebilir pili sayesinde mobil olarak da kullanılabilir. 340- 800 nm dalga boyu spektrumu ile MACHEREY-NAGEL'den fotometrik olarak değerlendirilebilen tüm test kitlerinin ölçümüne olanak tanır. NANOCOLOR Advance bu nedenle su ve atık su analizinin tüm spektrumunda evrensel olarak kullanılabilir.

The spectrophotometer NANOCOLOR Advance combines the most important features of our portable compact photometer PF-12Plus and our high-precision spectrophotometer NANOCOLOR VIS II. It provides precise and reliable measurement results in the daily laboratory routine and can also be used mobile due to its rechargeable battery. With its wavelength spectrum of 340 - 800 nm it allows the measurement of all photometrically evaluable test kits from MACHEREY-NAGEL. The NANOCOLOR Advance can therefore be used universally in the entire spectrum of water and wastewater analysis.

Technical Data

Brand NANOCOLOR

Type Spectrophotometer with reference detector technology (RDT)

Light source Halogen lamp

Optical system Monochromator

Wavelength 340 nm–800 nm

Wavelength accuracy ± 2 nm

Wavelength resolution 1 nm

Wavelength reproducibility ± 0.1 nm

Wavelength calibration Automatic

Wavelength selection Automatic, barcode, manual

Scan speed 1 complete scan in less than 3 min

Spectral bandwidth < 4 nm

Photometric range +/- 3.0 E in the range 340–800 nm

Photometric accuracy 0.003 E at 0.0–0.5 E; 1% at 0.5–2.0 E

Photometric linearity < 0.5 % at 0.5–2.0 E; ≤ 1% at > 2 E with neutral glass filters at 546 nm

Stray light < 0.5 %

Measuring modes More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; 2-point calibration; scan; nephelometric turbidity measurement

Preprogrammed tests NANOCOLOR tube tests and standard tests, VISOCOLOR ECO test kits and Powder Pillows

Turbidity measurement Nephelometric turbidity measurement (based on ISO 7027, 16 mm and 24 mm) 1–1000 NTU

Cuvette slot Tube test 16 mm, 24 mm OD; Standard test 10 mm, 20 mm, 40 mm and 50 mm

External light Insensitive to external light, fast measurements without cuvette slot cover

Data memory 1000 results, GLP conform

Display Backlit colored 5" display with touch screen

Internal quality control With NANOCONTROL NANOCHECK 2.0

Operation Barcode technology, icon-based menu guidance, touch screen

Language DE / EN / FR / ES / NL / IT / HU / PL / CZ / PT-Br / TK / BG / RO / DK

Interfaces LAN (CAT 6, only use shielded cables with a maximum length of 20 m) 2 x USB (Host), 1 x USB (Function)

Update Free via USB stick

Operating range 10–40 °C, max. 80 % relative humidity (non-condensing)

Power supply Input 110–240 V AC, Output 12 V 3A DC; 6,4 V, 7,2 Ah via built-in battery

Dimensions 325 x 280 x 130 mm

Weight 3.8 kg

Warranty 2 Years

CE certified Yes

Scope of delivery Photometer, manual (quick start guide), protective covering, power cable, USB stick, calibration cuvette, certificate and cleaning cloth

Hazardous material No
