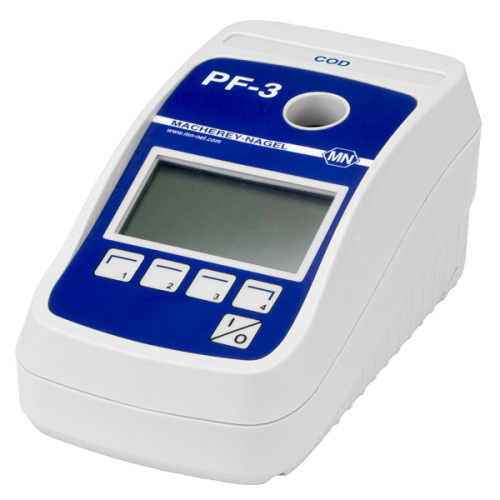

MACHEREY-NAGEL TAŞINABİLİR COD - KOİ FOTOMETRESİ PF-3 COD

Kompakt fotometre PF-3 COD, MACHEREY-NAGEL fotometre ailesinin en küçük üyesidir. KOİ versiyonu özellikle KOİ analizi ihtiyacı için tasarlanmıştır. Çoğu NANOCOLOR COD tüp testinin ölçümlerini destekler. Kullanışlı ve kompakt ancak güçlü tasarımı, bu hafifliği mobil analiz için ideal bir yol arkadaşı yapar.

The compact photometer PF‑3 COD is the smallest member of the MACHEREY‑NAGEL photometer family. The COD version is especially designed for the need of COD analysis. It supports measurements of most NANOCOLOR COD tube tests. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis.

Technical Data

Type                                             LED photometer with microprocessor control, self-test and auto calibration

Light source                                     LED

Optical system                             LED + interference filters

Wavelength                                     365 nm / 450 nm / 595 nm

Wavelength accuracy                     ± 2 nm, bandwidth at half transmission 10 nm–12 nm

Preprogrammed tests                     NANOCOLOR tube tests

Cuvette slot                                     Round tubes 16 mm OD

External light                             Insensitive to external light, fast measurements without cuvette slot cover

Data memory                             50 measurements

Display                                             Backlit graphic display, 128 x 64 pixel

Auto off                                             Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min

Internal quality control             With NANOCONTROL NANOCHECK 2.0

Operation                                     Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists

Language                                     DE / EN / FR / ES / IT / HU / PL / PT / TR 

Interfaces                                     Mini-USB

Update                                             Free via internet / PC

Operating range                              10–40 °C, max. 80 % relative humidity (non-condensing)

Power supply                             3 AA batteries, rechargeable batteries, USB interface; optional internal accu-pack

Housing Shock-resistant;                waterproof and dustproof, according to IP 68

Dimensions                                    170 x 95 x 68 mm

Weight                                             0.5 kg

Warranty                                    2 Years

CE certified                                    Yes

Scope of delivery                            Photometer, manual, batteries and certificate

Hazardous material                    No
