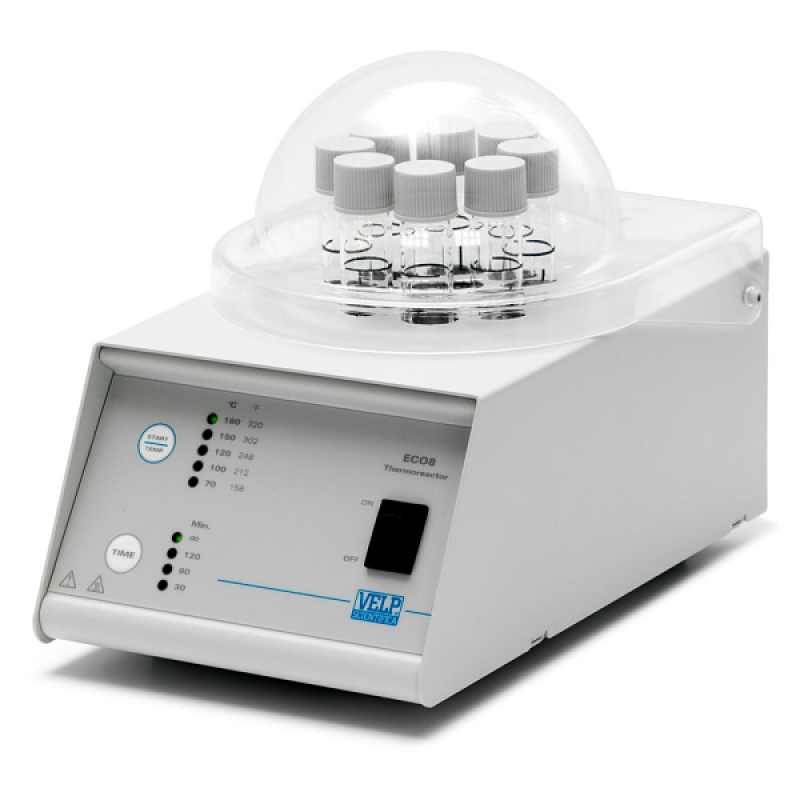

VELP TERMOREAKTÖR ECO 8

ECO 8, analiz gerçekleştirmek için gereken iki parametre olan hem zaman hem de sıcaklığın kolay ve sezgisel programlanmasını sağlar.

 Kullanıcı, beş sıcaklık (70, 100, 120, 150 ve 160 °C) ve dört farklı zamanlama (30, 60, 120 dakika veya sürekli) arasında seçim yaparak bir değerden diğerine geçebilir.

 Küçük test tüplerindeki termoreaksiyon, reaktif tüketimini en aza indirir ve aynı anda birden fazla numune üzerinde çalışmak için yalnızca bir ısıtma bloğu gerektiğinden gerekli ekipmanı azaltır.

Her test, bloğa yerleştirilen ve az miktarda reaktif ve numune gerektiren tek kullanımlık bir şişeye sahiptir, bu da maliyetleri düşürür.

 Analiz süresi sona erdiğinde ünite otomatik olarak kapanır.

ECO serisinin ayırt edici özelliklerinden biri, şeffaf test tüpü kapağı ve çeşitli modellerde bulunan çeşitli sıcaklık güvenliği özellikleri sayesinde mümkün olan yüksek güvenlik seviyesidir.

Kullanıcı tüm tüpleri aynı anda hareket ettirebildiğinden, artan konfor başka bir avantajdır.

---------------------------------------------------------------------------------

The ECO 8 provide easy and intuitive programming of both time and temperature, the two parameters required to perform analysis.

 The user can switch from one value to another, being able to select between five temperatures (70, 100, 120, 150 and 160 °C) and four different timings (30, 60, 120 minutes or continuous).

 The thermoreaction in small test tubes minimizes reagent consumption and reduces the equipment required, as only one heating block is needed to operate on multiple samples simultaneously.

Each test features a disposable vial that is inserted into the block, and requires small amounts of reagent and sample, lowering costs.

The unit automatically shuts down when the analysis time expires.

One of the distinguishing features of the ECO series is the high level of safety, which is possible thanks to the transparent test tube cover and the various temperature safety features that the various models are equipped with.

Increased comfort is another benefit, as the user can move all the tubes simultaneously.

TECHNICAL DATA

CONSTRUCTION MATERIAL:                                     Epoxy painted metal structure

MODELS:                                                                      ECO 8 8 pos. (Ø16 mm) + 1 pos. (Ø22 mm)

SET TEMPERATURE:                                                    display visualization

COUNTDOWN:                                                            display visualization

END OF THE CYCLE:                                                    acoustic signal with automatic switch-off

POWER:                                                                         ECO 8 140 W

 WEIGHT:                                                                       ECO 8 2 Kg (4.4 lb)

DIMENSIONS (WXHXD):                                              ECO 8 135x95x230 mm (5.3x3.7x9.1 in)

SELECTABLE WORKING TEMPERATURES:                70, 100, 120, 150 and 160

SELECTABLE WORKING TIMES:                                  30, 60, 120 or continuous

TEMPERATURE STABILITY:                                          ± 0.5 °C

TEMPERATURE HOMOGENEITY:                                ± 0.5 °C

TEMPERATURE PRECISION:                                        ± 1 °C

REACHING OF SET TEMPERATURE:                           acoustic and visual signal

COUNTDOWN:                                                              visual signal

END OF CYCLE:                                                             acoustic and visual signal

PROBE INTERRUPTION:                                               acoustic and visual signal

BROKEN PROBE:                                                           acoustic and visual signal

EXCEED TEMPERATURE RANGE:                                acoustic and visual signal
